Rolling Spot (10W)

General Details
  • Single, Powerful COB (chip on board) LED design package
  • Rolling aiming method
  • Easy to switch optics on site
  • Mo track compatible

Model: 70CES-10W-xx  (xx= Lens)
Size: Eyeball-70.0mm(Dia)(2.76”) x 58.0mm(H)(2.28”)
Yoke set- 81mm(L)(3.19”) x 70.0mm(W)(2.76”) x 82.3(H)mm(3.24”)
LED Quantity: 1 per Eyeball
Power Consumption: 10.6W per Eyeball
Output Lumen: 1270lm per Eyeball
Input Voltage: 24VDC
LED Types: COB LED
CRI: >90
Lamp Life: 50,000 Average life hours
Available Color (K): 3000, 3500, 4000 (Custom color available)
Lens:
Fiber Optic Lens (FOL) 201NA-2, 201-2, 101-2
Cone Lens (CL): 29°, 50° (fwhm)
Reflectors (RF): 21°, 33°, 45°, 57°
Flat Lens (FL): 24°, 38°

Dimmable: Yes
Cooling: Fan Cooling, Heat sink
Suggested Room Temperature: 0°~40°C
Suggested Room Humidity: 20~80%
Application: Interior use only
Mounting Method: Magnet, Mo Track
Accessories: Snoot, Diffuser (253/132) are available



Accessory

Lens

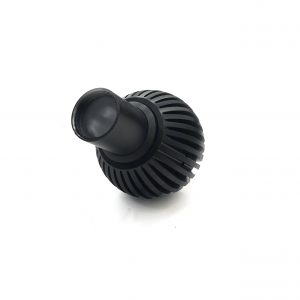

FOL-201NA

FOL-201

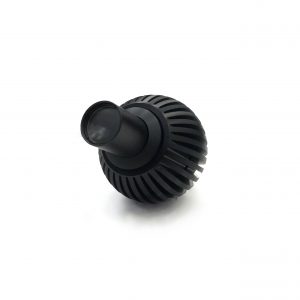

FOL-101

Cone Lens (CL)

Reflector (RF)

Flat Lens (FL)

Cut Sheet and IES
