1010TR Linear

General Details
  • Compact yet powerful
  • Suitable for corner lighting
  • Smooth and consistent light
  • Easy installation with magnet
  • Daisy chain for curved space is available

Model:
1010TR-757-12.5-xxxxK-yyyy-L (x=Color) (y=Length) (L=Lens Cover)
1010TR-757-25-xxxxK-yyyy-L (x=Color) (y=Length) (L=Lens Cover)
1010TR-T02-xxxxK-yyyy-L (x=Color) (y=Length) (L=Lens Cover)

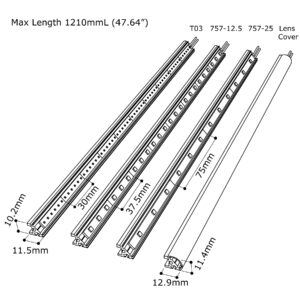

Size:
10.2mm(W)(0.40”) x 10.1mm(H)(0.39”)
11.4mm(W)(0.44”) x 11.5mm(H)(0.45”)[Lens Cover]
x Max length 1210mm(L)(47.64”)
LED Strip:
757/12.5mm – 37.5mm(1.48”) Increment
757/25mm – 75.0mm(2.95”) Increment
T02 – 30mm(1.18”) Increment
LED Quantity:
757/12.5mm – 3 per 37.5mm(1.48”)
757/25mm – 3 per 75.0mm(2.95”)
T02 – 6 per 30mm(1.18″)
Power Consumption: 6W per 300mm(L)(11.81”)
Output Lumen:
757/12.5mm – 490lm per 300mm(L)
757/25mm – 430lm per 300mm(L)
T02 – 600lm per 300mm(L)
Input Voltage: 12VDC
LED Types: SMT LED
CRI: >90
Beam Angle:
757 – 120°
T02 – 180°
Lens Cover: Semi Translucent, Opaque
Lamp Life: 50,000 Average life hours
Available Color (K):
757 – 2700, 3000, 3500, 4000
T02 -3000, 3500, 4000
Dimmable: Yes
Cooling: Heat sink
Suggested Room Temperature: 0°~40°C
Suggested Room Humidity: 20~80%
Application: Interior use only
Mounting Method: Magnet

Accessory
LED

101TR-757-12.5

101TR-757-25

101TR-T02













Lens Cover

Semi Translucent

Opaque













Daisy Chain

T02 Daisy Chain











Cut Sheet
