CLT-008-T02 Series

General Details
  • Wide beam angle (180°)
  • Ultra thin profile
  • Flexible strip suitable for both flat or curved surface
  • Field cuttable
  • Metal backing available for heat management

Model: CLT-008-T02
Size: 8.0mm(W)(0.24”) x 1.75mm(H)(0.06”) x Max length 900mm(L)(35.43”)
Power Consumption: 6.0W per 300mmL(11.81”)
Output Lumen: 600lm per 300mmL
Input Voltage: 12VDC
LED Types: SMT LED
CRI: >90
Available Color (K): 2700, 3000, 3500, 4500
Beam Angle: 180°
Dimmable: Yes
Cooling: Heat sink (required)
Application: Interior use only

IES File: Available upon request
Diagram: Available upon request

Accessory
Heatsink



Display Case Application

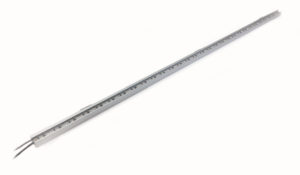

Straight type

Round edge adjustable heatsink (R300mm type)

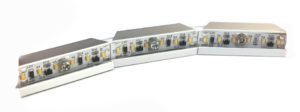

Round edge adjustable heatsink (R225mm type)

Projects

Coming Soon

Cut Sheet
